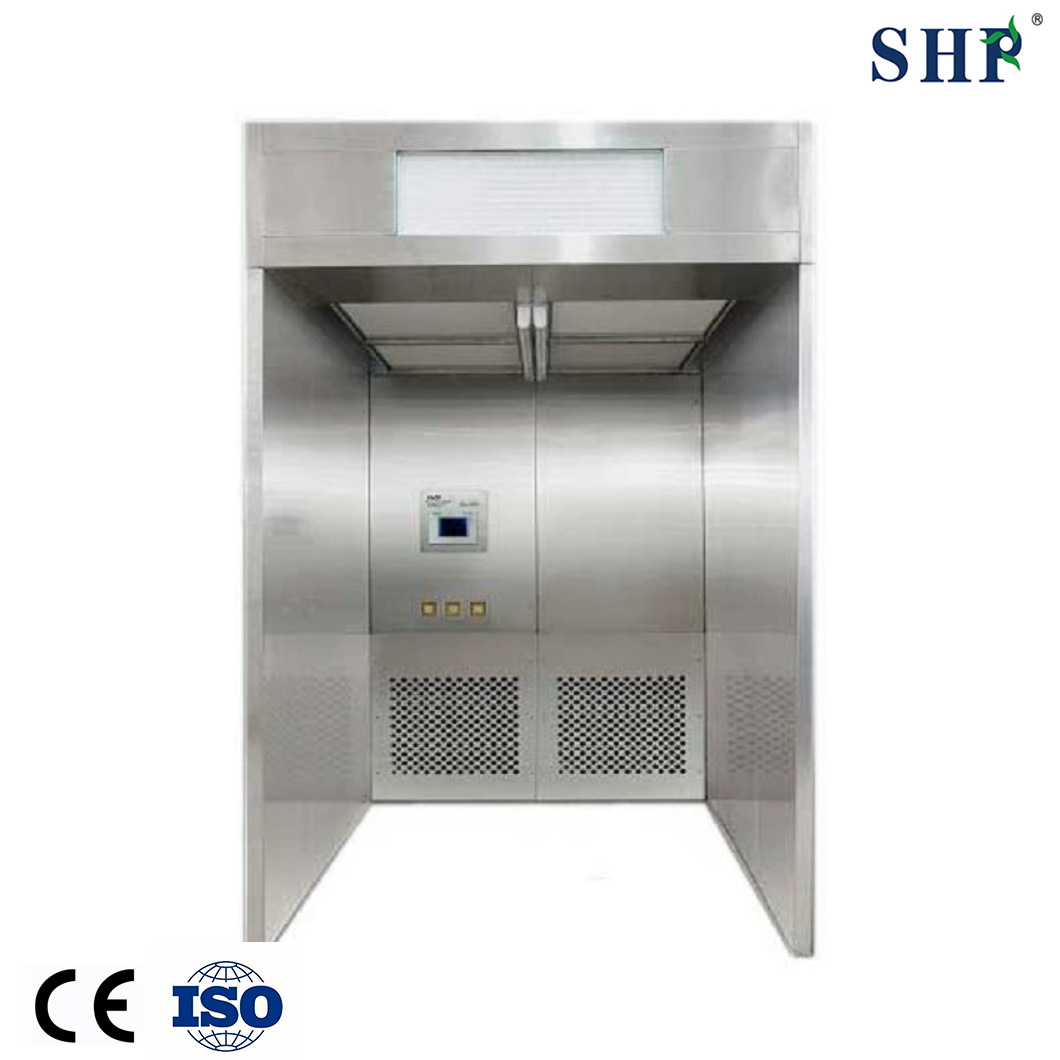

CE/ISO/GMP Biobase High-Cleanliness Dispensing Booth Sampling or Weighing Booth Dispensing Booth
- PRODUCT DETAILS
- RELATED PRODUCTS
PRODUCT DETAILS
SHP CLEANROOM PRODUCTS OVERVIEW

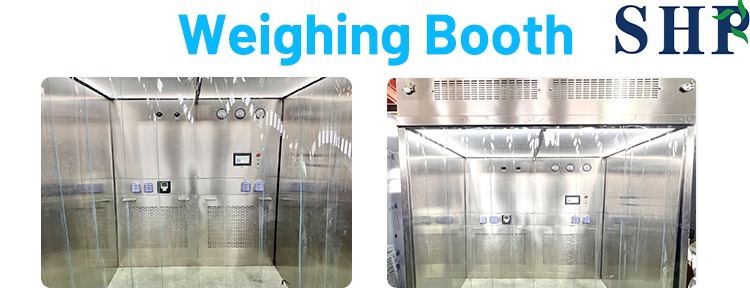

ABOUT DISPENSING BOOTH:
- Customized design.
- With the impoeted differential pressure gauge which can monitor the filters and remind to replace the air filters.
- The sampling booth with the primary filters, medium dfficiency filters, and del seal HEPA filters(0.3 microns)
- U.v. Light is available for it.
- With the LED light inside the sampling booth.
- With stainless steel 304 material.
- Noise less than 65db.
- With the PAO test point.
- Clean class is lSO5 /100 clean class.
|
External Siza (W*L*H mm) |
1200*1200*2600 | 1300*1300*2600 | 2400*1300*2000 |
|
Internal Size (W*L*H mm ) |
1100*700*2000 | 1200*800*2000 | 2300*1300*2000 |
| Working Area Air Flow(m³/h) | 1250 | 1550 | 4850 |
| Power（W） | 270 | 400 | 750 |
| Wind Speed（m/s） | 0.3-0.6m/s adjustable | 0.3-0.6m/s adjustable | 0.3-0.6m/s adjustable |
| Clean Class | A | A | A |
| Noise DB | ≤65 | ≤65 | ≤65 |
| lllumination（Lux） | ≥300Lux | ≥300Lux | ≥300Lux |
| Filteration | G4+F8+H14 | G4+F8+H14 | G4+F8+H14 |
| Power Voltage | 220V 50Hz 1PH | 220V 50Hz 1PH | 220V 50Hz 1PH |
